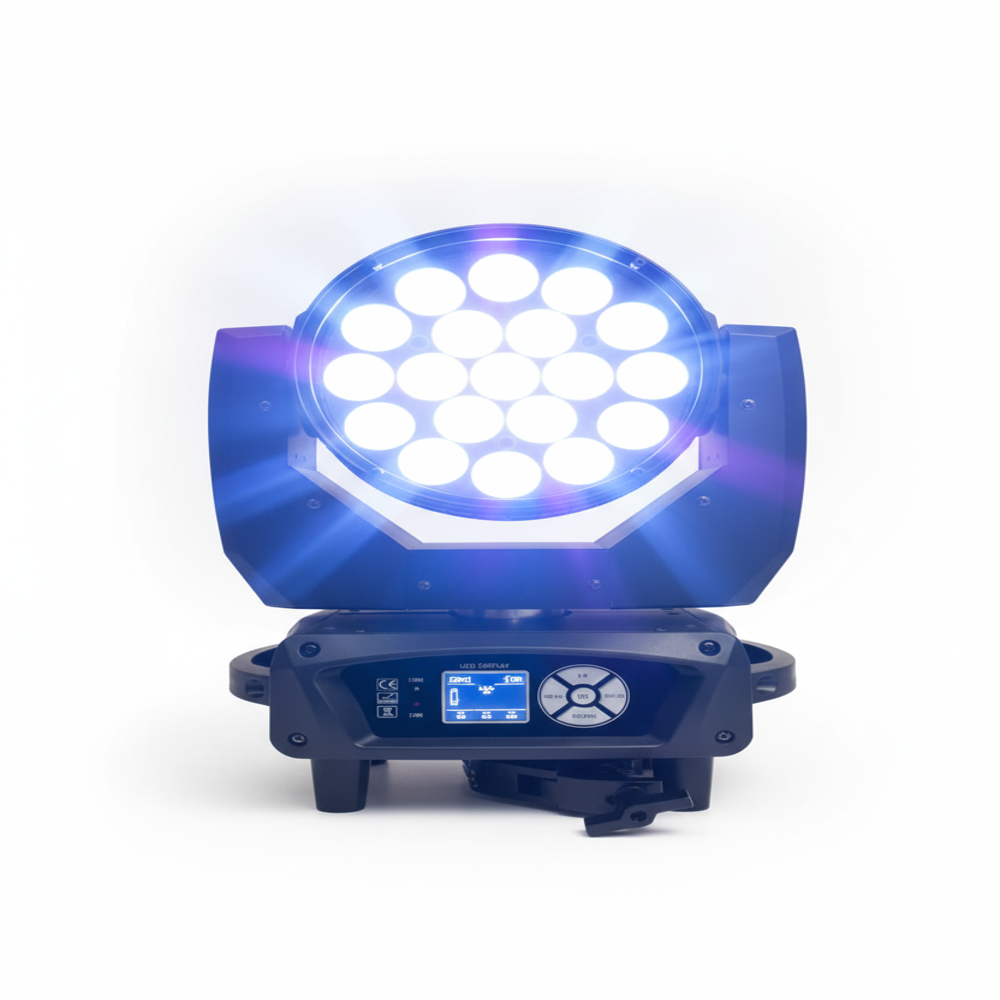

19 X 15W bee eyes Zoom LED moving Wash RGBW with AURA effect WITH PIXEL AND MATRIX

Send Inquiry

Request To Call Back

19 X 15W bee eyes Zoom LED moving Wash RGBW with AURA effect WITH PIXEL AND MATRIX

Name: 19 X 15W bee eyes Zoom LED moving Wash RGBW with AURA effect WITH PIXEL AND MATRIX
Brand: AUDITORIUM EXPERTS
Price: 77294.0 INR
Availability: InStock

Price 77294.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

19 X 15W bee eyes Zoom LED moving Wash RGBW with AURA effect WITH PIXEL AND MATRIX Specification

Features
AURA Effect, Pixel Control, Matrix Effect, Zoom Function, Quiet Operation

Weight
8.5 kg

Surface Finish
Powder Coated

Mounting Type
Hanging Bracket

Usage & Applications
Auditoriums

Thickness
Standard

Product Type
LED Moving Head Wash with Bee Eyes Zoom and AURA Effect

Material
Aluminum Alloy, ABS Plastic

Rated Power
450W

Length
Approx. 360 mm

Voltage
AC 100-240V

Lighting
LED RGBW

Input Voltage
AC 100-240V, 50/60Hz

Working Temperature
-20C to 45C

Rated Current
2.5A

Socket
PowerCON In/Out, 3-pin/5-pin XLR

Color
Black

Height
450 mm

Standby Consumption
<0.5W

Pan/Tilt Movement
540 Pan / 270 Tilt with 8/16 bit resolution

Display
LCD screen with function menu

IP Rating
IP20 (Indoor Use Only)

Control Protocol
DMX512, RDM, Master/Slave, Sound and Auto modes

AURA Effect
Independent LED Aura backlight ringRGB color mixing

Lens Type
High-efficiency optical lens system

LED Type
19 x 15W 4-in-1 RGBW high-brightness LEDs

Protective Features
Overheat and overcurrent protection

Pixel Control
Individual control of each LED pixel for matrix and design patterns

Power Link
Up to 5 units @ 230V

Zoom Range
6 - 60 Smooth Linear Zoom

Cooling
Intelligent variable speed fan cooling

Strobe
125 Hz electronic strobe, pulse and random strobe

Dimming
0-100% linear electronic dimmer

Control Channels
21/35/78 DMX Channels (various modes)

About 19 X 15W bee eyes Zoom LED moving Wash RGBW with AURA effect WITH PIXEL AND MATRIX

Voltage: AC90-240V, 50-60Hz;

Power: 450W

Light source: 19*15W RGBW 4 in 1 LEDs

Control mode: DMX512, Sound, Auto, Master,

Channel: 21/23/35/78/92/97 CH

Function Effects: Coloring, Beam, Image, Effect Mode

(Swirl, Kaleidoscope), Motorized Focus, Zoom,

The front mirror plate can be rotated infinitely in both directions

Color mixing: RGBW color is automatically corrected;

Color temperature: 2500-8000K, linearly adjustable

Dimming: 0-100% linear dimming RJ45 connectors, silent fans and silent motors

Dynamic Lighting with AURA Effect

Experience stunning visual effects thanks to the independent AURA backlight ring, which delivers vibrant RGB color mixing. This feature enhances any stage performance, creating immersive atmospheres and eye-catching accents. The combination of powerful 4-in-1 RGBW LEDs and intricate pixel control broadens creative possibilities for lighting designers.

Optimal Control and Compatibility

Seamlessly integrate this moving wash fixture into existing lighting systems with multiple DMX channel modes (21/35/78), RDM support, and versatile operating protocols. The precision pan (540) and tilt (270) movements with 8/16-bit resolution allow for exact positioning and complex lighting sequences.

Reliable Design for Professional Use

Constructed from durable aluminum alloy and ABS plastic, the fixture features a high-efficiency lens system, intelligent cooling, and up to 5-unit power linking at 230V. Safety is prioritized with overheat and overcurrent protection. Its robust yet lightweight build makes it ideal for various indoor installations, from auditoriums to event venues.

FAQ's of 19 X 15W bee eyes Zoom LED moving Wash RGBW with AURA effect WITH PIXEL AND MATRIX:

Q: How does the AURA effect benefit my lighting design?

A: The AURA effect provides an independent RGB backlight ring that allows you to create vibrant color accents and dynamic backgrounds. This enhances the overall atmosphere and visual complexity of your stage setup, making effects more captivating and immersive.

Q: What control options are available for the 19 x 15W Bee Eyes Zoom LED moving wash?

A: You can control the fixture through DMX512, RDM, Master/Slave, sound-activated, and auto modes. The unit supports 21, 35, or 78 DMX channels, accommodating a wide range of programming and creative needs.

Q: When is this moving wash suitable for use?

A: Designed for indoor environments (IP20), this fixture is ideal for auditoriums, theaters, event halls, and stage productions. Its versatile features and robust build ensure reliable performance for professional or rental applications.

Q: Where can I install or mount the unit?

A: The fixture comes with a hanging bracket for easy mounting on lighting trusses or rigs. Its lightweight and compact design allow installation in various indoor settings, from stage grids to fixed auditorium mounts.

Q: What is the process for setting up and operating the light?

A: Simply connect the power via PowerCON In/Out, select your control protocol (DMX, RDM, etc.), and use the LCD display to navigate setup options. Pixel and matrix effects can be programmed via compatible lighting controllers, enabling individual LED control for intricate patterns.

Q: How does individual pixel control enhance lighting shows?

A: Pixel control allows each LED to be managed separately, enabling matrix effects and custom pattern designs. This increases creative flexibility and delivers visually impressive sequences tailored to any event or show.

Q: What protective and maintenance features does the unit offer?

A: The fixture includes overheat and overcurrent protection for safety, along with an intelligent variable-speed fan for efficient cooling. These features minimize maintenance and prolong the life of the light in demanding environments.
