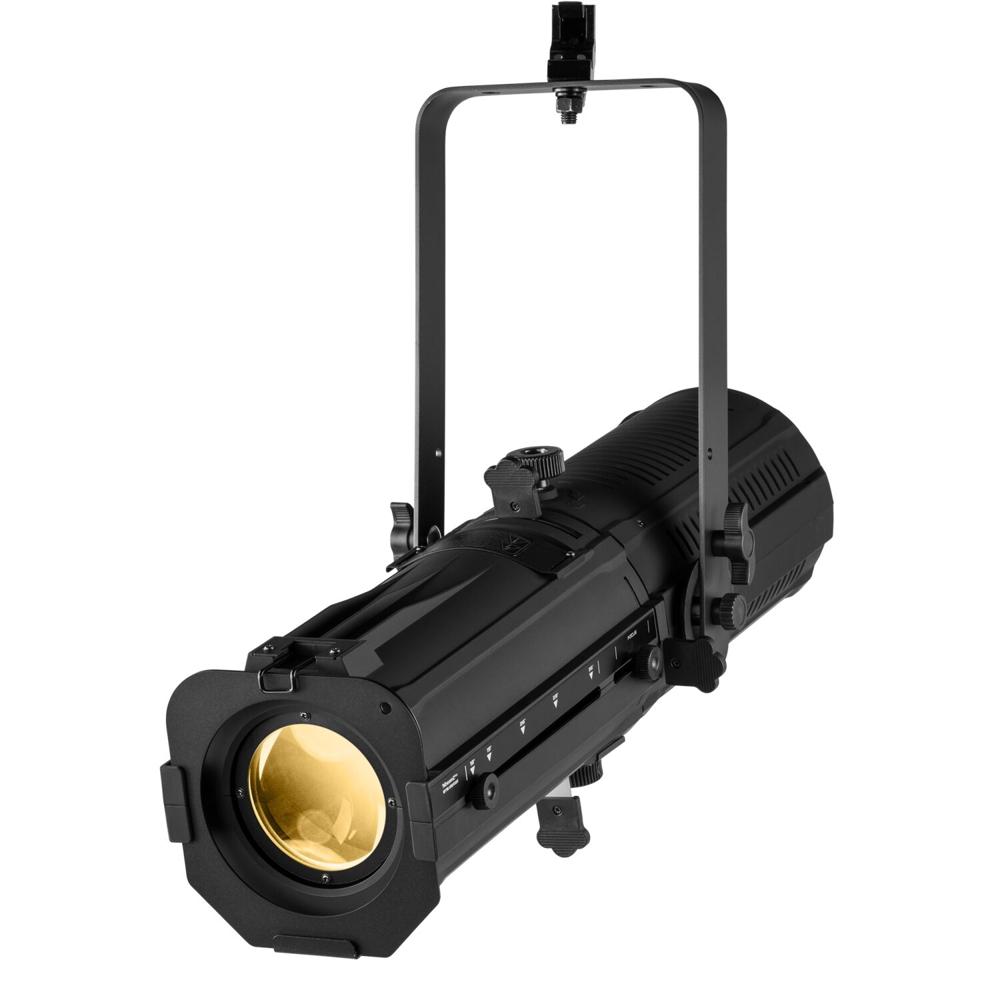

LED 300W Zoom Profile Spot

Name: LED 300W Zoom Profile Spot
Brand: AUDITORIUM EXPERTS
Price: 68595.0 INR
Availability: InStock

Price 68595.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

LED 300W Zoom Profile Spot Specification

Mounting Type
Yoke mount

Features
Motorized zoom, DMX control, high CRI, silent operation

Usage & Applications
Auditoriums

Surface Finish
Powder coated

Weight
8.5 kg

Product Type
LED Zoom Profile Spot

Material
Die-cast aluminum

Rated Power
350 W

Length
610 mm

Voltage
AC 100-240V

Lighting
LED COB

Input Voltage
AC 100-240V, 50/60Hz

Working Temperature
-20C to 40C

Rated Current
1.7A

Socket
3-pin XLR

Color
Black body, 3200K/5600K output

Height
290 mm

Light Source
300W high power LED COB

Display
LCD digital display

Control Mode
DMX512, Master/Slave, Auto Run, Manual

Dimming
0-100% linear

Life Span
50,000 hours (LED)

CRI (Color Rendering Index)
>90

Cooling
Intelligent silent fan

Zoom Range
15°-38° motorized

Beam Angle
15°-38° adjustable

Power Consumption
Max 350W

About LED 300W Zoom Profile Spot

Power supplyAC100V-240V 50Hz/60Hz

Light sourceCitizen 300w COB LED (two colors)

Max Power350W

Optical lensImaging optical lens group with special glass

Adjustable Color Temperature: 3200/5600k

Color Temperature deviation: 5%

Life50000h

Color rendering index: CRI95 Ra

Manual Dimmer0%100%

Beam angle: 15-40 degrees

Control system16 Bit dimming,STM32 control chip,DMX512

Power Connection: Swiss Neutrik Power Con

Max Clock frequency: 72m/Hz

Dimming Frequency: 8k/Hz

Channels3CH

Display screenLCD

Working Environment-2035

Tilt90

Protection classIP20

RJ45 connectors, silent fans

Outstanding Lighting Performance

Thanks to a high-power 300W LED COB source and a CRI greater than 90, this profile spot delivers exceptional light quality suitable for stage, studio, or auditorium settings. The motorized zoom allows smooth beam angle adjustments between 15 to 38 degrees, ensuring flexibility in lighting design for various applications.

Advanced Control and Silent Operation

With versatile control modes-including DMX512, Master/Slave, Auto Run, and Manual-users can tailor their lighting setup with precision. The LCD digital display makes programming easy, while the intelligent silent fan ensures quiet operation, making the fixture perfect even in noise-sensitive environments.

FAQ's of LED 300W Zoom Profile Spot:

Q: How do I adjust the beam angle on the LED 300W Zoom Profile Spot?

A: The beam angle ranging from 15 to 38 can be effortlessly adjusted using the motorized zoom feature. This adjustment is controlled either manually through the LCD digital display or remotely via DMX512, enabling precise control for focused or wide coverage.

Q: What benefits does the high CRI provide for lighting applications?

A: With a Color Rendering Index (CRI) above 90, the fixture ensures that colors appear vivid and accurate. This is especially important in professional settings such as theaters and studios, where true color representation enhances visual performance and ambiance.

Q: Where is the LED 300W Zoom Profile Spot best used?

A: This lighting fixture excels in large indoor venues, including auditoriums, theaters, conference halls, and event spaces. Its adjustable beam, high brightness, and silent cooling system make it an ideal choice for professional environments requiring reliable, versatile illumination.

Q: What control options are available for operating the LED profile spot?

A: The fixture supports multiple operation modes: DMX512 for integration with standard lighting consoles, Master/Slave for synchronized performance across multiple units, Auto Run for standalone operation, and Manual mode for direct setup via the LCD display.

Q: How energy efficient and durable is the LED 300W Profile Spot?

A: Powered at a maximum of 350W, the LED COB technology offers high luminous output with lower energy consumption compared to traditional lighting. Its LED has a rated lifespan of 50,000 hours, providing long-lasting performance and reducing maintenance costs.

Q: What mounting and installation features does the fixture offer?

A: Built from die-cast aluminum with a powder-coated finish, the unit is robust and lightweight. The yoke mount design makes it easy to install on trusses, ceilings, or stands, offering versatile placement options in any venue.
